Portable Propane Fire Pits Continued

D RV 4
Here are our portable propane fire pit also available in natural gas as well. These are made from perforated aluminum and you and adhere what ever material you would like or leave them as they are. These are also available in any size, shape or material as customs or even with wheels.
propane fire pit 1propane fire pit 2
Above is the base unit with out the glass, just the controller and thermocouple
propane fire pit 3propane fire pit 4
propane fire pit 5propane fire pit 6
Above and below you can see the thermocouple sticking out from the glass
propane fire pit 7propane fire pit 8
propane fire pit 9propane fire pit 10
propane fire pit 11propane fire pit 12
propane fire pit 13propane fire pit 14
propane fire pit 15propane fire pit 16
These can be run from a small or large propane tank as well from natural gas.

Portable fire pit for propane or natural gas. These will be available in unfinished (as shown) just add your stone, plaster, marble, granite, brushed stainless steel or? The fire pit shown is a natural gas with Multi Mix Base Glass (about 30 to 40 colors from our mixing counter.  The size is a 30" x 30" x 12" tall.  The custom fire pits we will be manufacturing have a single wall construction frame with a drop in solid bottom fire pan/ tray. We will be offering both versions.
new pit 1new pit 2
new pit 3new pit 4
new pit 5new pit 6
new pit 7new pit 8
new pit 9new pit 10
new pit 11new pit 12
new pit 13new pit 14

The fire pit below is a custom propane fire pit. We use perforated aluminum for the wall construction and the pit is single wall construction with a 1 1/2" deep pan on top. We installed a 12" double stainless steel ring for the burner. The rest was done by Bill Moss in Texas. Very nice job Bill!. We built the pit to Bills specs which were 26" x 26" x 20" tall so he could finish it to the size he wanted. The pit shown is one of our proto types and not the actual pit used.

propane fire pit 1

Above is how it started

And below is what the customer made it!

bill 1

bill 2

bill 3

bill 4

bill 5

bill 6

bill 7

bill 8

Above and below is the quick disconnect for the propane gas

bill 9

bill 10

We use Black Base Glass in the fire pit. It looks light because of the flash from the camera.

bill 11
The next fire pit was designed by and built for Kevin Leys of Chicago. He did a great job and you decide.

First he started with a single wall construction fire box with a pan on the top

k1

k2

Then it was framed for exterior plywood or you could use metal studs and wonder board.

k3

The gas valve was located to the outer framed wall

k4

k9

k5

k6

k7

This is a natural gas fire pit. It was tested as soon as it turned dark, fun!

k8

k10

k11

k12

Now we add the crushed lava rock and glass over that. There are many sub materials you can use as a filler. Just ask.

k13

k14

Great back yard by the way! Chicago, remember?

k19

k20

Now we start to apply the tile for the finishing touch.

k15

k16

k17

k18

k21

k22

k23

k24





The stainless steel pan burner below has a 24" stainless steel star burner installed and it is connected to our 110 volt electronic ignition. This is a propane burner.
star 1
star 2
star 3
star 4
star 5
 We then covered it with our Starfire Base Glass to test for soot and as you can see, a clean burn.
star 6

 Our products do not require any certification from the AGA, CSA or UL as it is considered a stand-alone product by these agencies. We are told that we would need a certification if sand and or lava rock would need certification. The agencies are franchise operations and they are privately owned and they are not a government agency. These agencies are hired for mass production testing and AGA, CSA and or UL do not certify custom one of a kind projects. Custom burners need no certification as this only applies to production equipment. Just so you can understand that a certification costs about $15,000.00 and certification was developed for production/ mass production to assure quality. Any parts that would normally need AGA or UL do in fact have these approvals. Parts with function need and should have some sort of approval. The pan burners we sell that do have UL, CSA and or any other listings are produced by other companies. The custom pan burners that we produce are just that, custom. Therefore do not require UL, CSA and or any other agency listings as these are custom. The parts that we use to build these pans are UL, CSA listed as they should be. We would never use any “Third World Country”  or any unlisted, untested parts to build any products and or parts to endanger any product performance what so ever.







The fire pit below is in San Francisco California. They use  one of out FPPK units.

Here you can see the simple construction.

moxie fire pit 1

A local artist made the glass inlay top. Very cool!

moxie fire pit 2

moxie fire pit 3

moxie fire pit 4

We supplied the FPPK and the Clear Base Glass

moxie fire pit 5





The burner below is one of our FPPK's (fire pit propane kit). With this FPPK we set it up for Black Magic! This was table tested for the pictures. Hopefully the customer will send us pictures after and during installation. We first sent these pictures for the customers approval. Here you go! The pan below belongs to Scott Spector and he finally installed the fire pit in his back yard, WOW, one really nice backyard!
black magic 1
This is one of our propane pan burner with slight modifications.
black magic 2
black magic 3
black magic 4
As you can see around the lower edges it was leaking and yes we did fix this.
black magic 5
black magic 6





The fire pit below was built by Scott Spector in Florida. He started with an FPPK 30 which includes a 30" base plate and a double 24" stainless steel ring. Here we go from the beginning:

SCOTT SPECTOR 3

The propane line was run/ installed under the pavers.

SCOTT SPECTOR 4

SCOTT SPECTOR 8

SCOTT SPECTOR 2

SCOTT SPECTOR 7

SCOTT SPECTOR 10

SCOTT SPECTOR 9

SCOTT SPECTOR 12

SCOTT SPECTOR 15

The colors that were used are

1/2" Clear Base Glass,

Black Magic in the center,

Clear Diamonds,

Cobalt Blue Topper,

Clear Topper,

Cobalt Blue Light Topper

and our FPPK 30". That is our 30" propane burner. You can see the actual burner above burning before shipment and installation.

SCOTT SPECTOR 6

We don't have any pictures of the fire pit burning at Scott's but he did tel us that when he fired it up again he would try to send us a few pictures. Thanks Scott.

SCOTT SPECTOR 14





The fire table below was built by Christina "Stina" in the San Francisco area. With a little ambition, imagination and our help, she now has one very nice fire table.

STINA 1

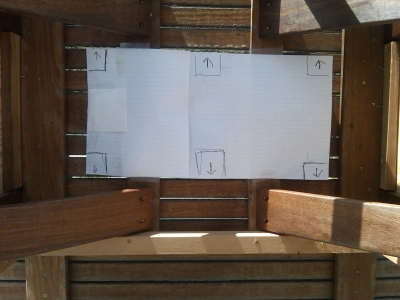

Here is where it started. She made  a template of the pan and where the mounting tabs would be located. Then we built the aluminum pan and propane burner for Stina to install.

STINA 2

Below is how the teak table started. We just brought it into the future.

STINA 8

STINA 7

Below the pan was installed with Galaxy Green Base Glass.

STINA 3

STINA 9

Below you can see the top installed and what a difference.

STINA 13

Below is her wonderfully finished project, Great job Stina!

STINA 14





The Fire Table below was installed in Sacramento California by and for Yard Crashers. The finished pictures will be posted on the Yard Crashers page when this project is installed after 01 20 10. This episode was to be labeled "Outdoor Shower" on HGTV and theDIY  Network but somehow it was labeled "Modern Fire Wall" go figure? It is episode 302 on HGTV or DIY  Network. The details will be shown on the DIY page when and as soon as we receive them from the producers. We built a square aluminum pan with an 18" double stainless steel ring and used one of our FPPK kits for the propane fuel. This will be shown on the episode coverage as well. Here are the pictures of the back yard and the finished fire table using propane.

Yard Crashers Shower 4

Yard Crashers Shower 5

Yard Crashers Shower 6

Yard Crashers Shower 7

Yard Crashers Shower 8





The propane burner conversion below was performed by Richard King of South Carolina.

Richard has one very cool Super Bowl party room! We assisted him in converting a propane fire pit one very nice clean burning fire pit. We will explain as we move along.

Richard King 1

Richard: You did a beautiful job on your gazebo!

Richard King 2

Richard King 3

Here is the fire pit turned up so you can see that we installed one of our FPPK (fire pit propane kit) The tank was under the deck.

Richard King 4

Richard may of had a few flex lines that were a bit too long.









Richard King 6

Richard King 7

It's supposed to look simple when it's finished.

Richard King 5

The controls were adapted to his and over his old controls.

Richard King 8

Richard King 9

Above is on low and I might add no black soot or smoke! You would think the manufactures of these tables would of figured it out by now?

Below is the standard ring but we installed thermocouple and safety pilot kit.

Richard King 10

Below is what were sent to convert. Small flames and no air mixer what so ever. Just a lot of soot and black smoke, seen it before?

Richard King 12

Below, not a lot of flame is there? The reason is once they turn it up for you, the soot starts to show. So they tell you it can't be turned up.

Richard King 11

Now we step in, air mixed calibrated to the ring and valve system and pilot light and thermocouple in place.

Richard King 13

On medium!

Richard King 15

and turbo high and still with a clean burn!

Richard King 14

and below is the 2009 Super Bowl Party! Thanks Richard!

Richard King 16

Yes, we can convert anything!





The Wine Barrel below was build by one of our newer dealers in Texas. Matt's Custom Welding. Contact us for information about Matt's wonderful work. We are going to be much more of Matt's work and look around his showroom in the pictures below. Many more projects to come.

Matts Custom 1

Matts Custom 2

There was a steel bowl installed using our propane system to burn our glass. They used Bronze Base Glass in the fire pit.

Matts Custom 3

Matts Custom 4









Propane Burner Issues



I have seen this scenario all too often. The supplier that you have purchased from only cared about making the sale of the glass. They did not ask what you were doing. How you were doing it. What you were working on, etc. etc. etc. They did not ask if you had propane or natural gas or if you had natural gas close by to use opposed to propane. You are now finding out that there is no customer support after the sale. We are the only manufacturer building one propane burner at a time to suit your needs. We care from beginning to end and more importantly after the fact! We offer customer support FOREVER!

 Let me tell you how we feel about these other companies selling products they know nothing about:

You purchased a Ford and now you are going to the Cadillac dealer for advice and parts on how to fix the problems.  That is not how it works. We need you to put pressure on the company that sold you the product that does not perform as you thought it should. We will and or can resolve your issues, but you need to make sure these companies stop selling products they know nothing about.

            Have you contacted the company that you purchased from?

Have you received any advice from this company on how to resolve the issue?

Are they even concerned about your problems?

Did you disclose to this company what you were working on?

Did this company ask for details about your project?

Have you asked if you can return all of the parts and products because of product failure?

Does this company even have any information on line about their success on propane burners?

Did you receive any customer support?

Does the company you purchased from even have a physical address where you can visit?

            We do genuinely feel bad for the customer being taken advantage of by companies such as these, selling parts and supplies, which they know nothing about.

Please keep us posted on your developments so we may continue to remedy your situation. We are proud of our creations, inventions, customer support, product lines as we do all of this for you, the customer!

This would be step one.  Then we would step in and fix your issues.

Gloria Schlifke President, Moderustic Inc







Our propane burners were set to 100,000 btu's each for maximum heat. The glass that we used was Bronze Rust Copper Base Glass.



 Click Here to see the
"Todd Gilbert Table!"





Scott Sanders drilled a hole in his patio table and attached the propane to the RV Fire Pit from the bottom. He can take it when he want anywhere by the use of a quick disconnect gas line to his tank.

Scott Sanders  Pit 2

Scott Sanders Pit 1





Here is the answer some of you think you know. (You don't!) These are Air Mixers, Venturis Carburetors.

These like a carburetor on any engine act as the air fuel mixture governor. Have you ever been behind an older car that smells funny? Wrong air mixture! Bad mechanic! The air mixers have to be calibrated not only to the valving but the burner as well. We have been building propane burners for several years now and we have never had an issue with any configuration that we have built, ever. It's the same as porting an engine for proper air flow. If you just STICK one of these on your burner then you may be giving us a call soon enough.

Here are a few pictures of the 1/2" and 3/4" air mixers, (40,000 to 400,000 btu mixers).

Air Mixers L and S 1

Air Mixers L and S 2

Air Mixers L and S 3

Air Mixers L and S 4

If you attach it and create back pressure, you will have a fire or an explosion, guaranteed. We are not trying to frighten you but to make you aware. We believe in safety first and we don't build systems without thermocouple and or pilot light systems, ever!

Air Mixers Large 1

Air Mixers Large 2

As you may have of seen on our "How Not To Do It Page" they still screw up no matter how hard they try. We are here only to help!

Air Mixers Large 3



The portable fire table/ pit below was built by Kris Day. This is a portable Propane Fire Pit and he installed Azurlite Base Glass. This is a fairly simple project that we can help you build by monitoring and supplying the correct parts. From the start here we go:

Kris Day Fire Table 10

Kris Day Fire Table 11

Kris Day Fire Table 9

From start to finish, propane or natural gas burners with or without a pan, we can help you build your own.

Kris Day Fire Table 8

Kris Day Fire Table 7

Kris Day Fire Table 6

Kris Day Fire Table 5



Steve Hinojos (S.B. County Sheriff) built two fire pits using propane. One of which was aWine Barrel Fire Pit and the other a traditional (oopsies on this one!). We will explain as we move on.

Steve Hinojos 4

We supplied the know how and all of the parts to make his Wine Barrel Fire Pit a success! great job Steve!

Steve Hinojos 3

Steve Hinojos 5

We also supplied Steve with the all of the propane parts to make his fire table work properly as well. It's when we got his pictures that we noticed the ROCKS!  You can't burn ROCKS, they EXPLODE! This you can see in the Famous "How Not To Do It" page. Initially he had no problems but once they took on moisture, sure enough he was back for some safe and sound glass!

Steve Hinojos 2

All in all, great job Steve!

Steve Hinojos 1


The next propane fire table was built by Rick Kasner in Arizona, great job! We inspired and supported Rick through out the complete project on "How To Do It Yourself"! DIY!!!

The glass that was installed is:

1/2" Frosted Base Glass

3/8" Gray Base Glass

Gray Topper

Irridizing Amber Brown Topper

We will explain as we move forward.

Base steel stud frame

RICK KASNER

Propane valve installed

RICK KASNER

Back side of valving and air mixer.

RICK KASNER

Durock is now applied.

RICK KASNER

Durock is finished

RICK KASNER

RICK KASNER

Table top is installed

RICK KASNER

Colors installed in propane pan burner

RICK KASNER

RICK KASNER

RICK KASNER

Drink beer, you are done!

RICK KASNER






The next fire pit was built for Chuck Krallman in the Bahamas. The challenge was 15 knots per hour trade winds and propane. Not a problem. We mock up all of our projects to insure that they work properly. I will explain as we move on.
   Chuck Krallman Bahamas
   We first start testing the venting and use cardboard or plywood only later to be replaces with 1/2" glass panels.
   Chuck Krallman Bahamas
   Chuck Krallman Bahamas
   Chuck Krallman Bahamas
   Chuck Krallman Bahamas
   Chuck Krallman Bahamas
   Proper venting and maintaining an upward draft is very important.
   Chuck Krallman Bahamas
   Chuck Krallman Bahamas
   We generally use Starfire (white) Base Glass to track the progress.
   Chuck Krallman Bahamas
   Chuck Krallman Bahamas
   Chuck Krallman Bahamas
  Chuck Krallman Bahamas
Generally when we test using propane we use Starfire (white) Base Glass to track the progress of success or failure.
Chuck Krallman Bahamas

Hopefully Chuck will send us the finished and installed pictures of the feature installed in his table.






  The next fire pit was a customer conversion with our FPPK propane attachments and burner.

FPPK propane burner install

What ever project you are converting or working on, we monitor your project all the way through. Provided you send pictures.

FPPK propane burner install

FPPK propane burner install

FPPK propane burner install

FPPK propane burner install

FPPK propane burner install

 Another Wine Barrel Fire Pit with Cobalt Blue Base Glass. This was propane as well.

Wine Barrel Fire Pit

Wine Barrel Fire Pit

Wine Barrel Fire Pit

Typically you will burn at about 30,000 btu's. This will allow your 20 lb tank to last about 15 to 20 hours.

Wine Barrel Fire Pit

Wine Barrel Fire Pit

Now if you go TURBO! This is 100,000 btus. You want big fire? Here you go!

We don't do wimpy. That is for the competition, or if that is what they call themselves.

Wine Barrel Fire Pit

Wine Barrel Fire Pit

Wine Barrel Fire Pit

Wine Barrel Fire Pit

You want fire? You got it.Propane is not an issue, for us anyway.

Wine Barrel Fire Pit

Wine Barrel Fire Pit

Wine Barrel Fire Pit

Click Here To Find Out More!



See Our Terms And Company Conditions!

Visit our E Store! "CLICK" HERE or below on the photo

Shop.EcoFireFeatures.com / Our E Store!

Ed Jaunzemis

Ed@Moderustic.com

Phone 909-989-6129        Fax 909-944-3811

9467 9th Street #D

Rancho Cucamonga, California 91730

We Make Fire Cool!

Moderustic® is proud to have been issued 4 U.S. Patent Numbers
and 2 Patents pending status!  5th one just awarded notice of allowance 10/23/2021
Covering our method of creating tumbled tempered glass for use in fireplaces and fire pits.
Patent Applications Published 2005, 2006, 2014 and 2017 (twice). Worlds most infringed PATENT in WORLD HISTORY!

Visit Our Original
E-STORE
Or Visit Our NEW
E-STORE!




Propane Prop 65 Warnings



Our Glass is SAFE and See Why!

Safe Glass


We Make Fire Cool!

Moderustic® is proud to have been issued 4 U.S. Patent Numbers
and 2 Patents pending status!  5th one just awarded notice of allowance 10/23/2021
Covering our method of creating tumbled tempered glass for use in fireplaces and fire pits.
Patent Applications Published 2005, 2006, 2014 and 2017 (twice). Worlds most infringed PATENT in WORLD HISTORY!



909-989-6129  Fax: 909-944-3811
or E-mail us at
Ed@Moderustic.com |  Jaunzemis@msn.com




Stop by and visit our Showroom in Rancho Cucamonga:(just north of the Ontario Airport
Moderustic Inc.
9467 Ninth Street Suite #D
Rancho Cucamonga, California 91730
Hours: Monday-Friday 9:00 to 6:00 Closed Saturday and Sunday, Saturday by appointment only.

If you're coming late, please call us and we will stay late.  We are 2 miles North of the Ontario Airport
_________________________________________________________________
Moderustic Fabrication University
MODERUSTIC FABRICATION UNIVERSITY
Investment, Employee or Career Opportunities.
_________________________________________________________________


  • Prop 65 Warning:
  1. WARNING: This product can expose you to chemicals including Lead and Lead Compounds, which are known to the state of California to cause cancer, and Carbon Monoxide, Lead and Lead Compounds which are known to the state of Califronia to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
  2. ADVERTENCIA: Este producto puede exponerlo a productos químicos como el plomo y los compuestos de plomo, sabidos por el estado de California como causa de cáncer, y el monóxido de carbono, el plomo y los compuestos de plomo, sabidos por el estado de Califronia como causa de defectos de nacimiento u otros daños reproductivos. Para obtener más información www.P65Warnings.ca.gov.


US patent numbers US9700987B1 and US9808905B2

, Patents and patents pending

Visit www.USPTO.GOV for details on Patent infringement

or E-mail us at
Ed@Moderustic.com |  Jaunzemis@msn.com

All of the pictures and content are copyright protected on this website: U.S. Copyright Registration No is: VA 1-650-624
Entitled: "Moderustic 1107"
Effective registration date is February 1, 2008.
Has anyone ever told you "Nice Logs" ? Nooo, I don't think so.
CSLB# C-17 693887

Violators will be prosecuted.

Note* When calling for any technical support we ABSOLUTELY (maybe)
require Digital photos from a camera not your phone (if that is all you have, then that's fine).

909-989-6129  Fax: 909-944-3811
or E-mail us at
Ed@Moderustic.com |  Jaunzemis@msn.com

_________________________________________________

Click HERE or on the Picture below to see our MOVIES!
Let's Go To The Movies
Click HERE or on the Picture above to see our MOVIES!

_________________________________________________________________

Check out the Car Garden, A fun car page by Ed

Car Garden

We now have "several" Patents and a Patent Pending Status. "We were the first to file" (yes we were), is why we have The Patents for FireGlass.

For any competitors out there, Second place is first loser. Sorry.

See our page for Investors!

See about our UNICORN PATENTS

  HOME |   PRODUCTS   |   FIRE FEATURES   |   ABOUT US   |   FAQ’s   |   CONTACT US   |   SITE MAP
Powered by PD/GO Digital Marketing Copyright © 2024 Eco Fire Features.com . All rights reserved.
