Water Fire Foutains

What?
The Vesta Awards were created by Hearth & Home magazine to recognize and honor companies for their innovation in product design and/or technology.

Where?
Awards will be presented at an industry-wide ceremony on Friday, February 29, 2008.

The reception and awards program will take place from 5:00-6:30 pm. at the Georgia World Congress Center, Atlanta, GA.

More details here:

http://hearthandhome.com/vesta/vesta.html

The fire pit below is a new product line from TC, one of our newest dealers. These come with a fibre optics feature, fire and water feature included.The glass that was use was a Clear Base Glass with Ice Ice Ice Topper and a splash of Dark Red Orange Topper, Copper Ruby Red Topper and several Diamonds through out for a pretty nice look. We will have pricing on these as soon as we start to distribute their newer products.

Las Vegas Yard Crashers!

This will air in April or 2010!

Here is a preview

This is what was done on the first day. I showed up on the beginning of the second and the final day. It's amazing what can take place in just 12 hours!

Above the pavers were installed the day before.

Below is the patio with the outdoor kitchen set aside for now.

Above is where the outdoor kitchen will reside later.

Even the palm trees were brought in! There was nothing on the site when it started the day before.

Below Ahmed was leveling the ground around the fire pit area. Ahmed worked all day, much harder than anyone else! I was very impressed how hard he actually works to get the show done.

Below is where the propane fire pit will sit. The controller will be mounted to the side of the concrete base after the paper tubes are cut away.

Above and below you can see the inside of the planter is coated to prevent water from leaching out.

Above you can see on the ground that we brought the fire bowl in. Just so you know it was about 300 lbs!

Above and below you can see outdoor kitchen. The trough coming out is actually water fall spilling into a dry creek bed below. The water feature was covered with a glass top making it a dining area as well. On the inner wedges they wrapped rope lights to accent the water and rocks under the glass top.

Above and below you can see the sand was installed as a base for the artificial grass to come.

Above they are compacting the sand for the grass to be installed.

Below Ahmed is finishing the dry creek bed.

Below the grass is installed.

Below the dry creek bed is finished and the grass is now installed in the back are as well.

Above is our fire bowl on propane. We used Starfire Base Glass with Ice Ice Ice Topper and Diamonds on top. We brought out several colors of Diamonds for the customer to pick and choose but she liked them all so much, she installed every last one!

Below you can see after everything was cleaned up how spectacular it turned out!

We are to feature several more episodes with Yard Crashers and we will be showing several more of our new product lines on their shows.  We still have several shows we need to post pictures of what we did. Please come back from time to time to see our latest updates.

I thank Ahmed and the producers of the Yard Crashers for giving us the opportunity to work with them.

Thanks to Tiffany, Krystal and Holly at Big Table Media.

"Click HERE for the DIY Network/ Yard Crashers Site!"

The fire pit below is going to be installed in Sacramento on 11 14 09 for the Yard Crashers/ DIY/ HGTV show. After it is and has been installed we will post pictures on theYard Crashers page. In the mean time here is the how to and why. We can build any size, shape, design feature you desire. We build to your imagination.

Below is the catch basin to hold the water for the feature

Above you see the auto fill?

Below the water pump is now install below.

Below the top pan is in place for testing with the fire and water bowls in place

Below the stainless steel ring is installed.

Below the glass (Bronze Base Glass) has been installed and the lights turned on.

.

Below you can see the pump has been turned on.

and now the fire.

We placed a card board template to replicate the table top to conceal the lights as well.

Now we add color to the water!

Here is the feature exposed with the blue water. You can change the water to any color you like.

This feature is only 6 1/2" tall. You can mount this under the table top and keep it only an inch or so above the surface of the table top.

So let's change it to red water and add Starfire Base Glass.

Remember, we build to your imagination!

The finished pictures will be posted on the Yard Crashers page when this project is installed after 11 14 09!

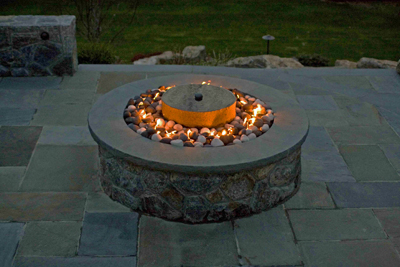

The fire pit pictures below are of a simple overflow water feature with Fire Stones all around.

The fire ring that was used was a 30" round side feed. We make custom rings for any application. Either for propane or natural gas fire pits or fireplaces.

 Click Here to see the
"Todd Gilbert Table!"



The fire pit below was built and designed by Brett Parks in Indiana.  Brett came to us to help hm create his water fire feature for his back yard and be able to winterize it during their frigid winters. The glass he used was a:

Clear Base Glass,

E.D Scarlett Diamonds,

E.D. Clear Diamonds.

We then built a custom shape stainless steel burner to fit his idea. We will explain as we go.

Here is his original concept drawing:

Below is his layout with pavers, electrical and gas line coming up.

6" deep water tank.

Stack a few more pavers.

Let's test it!

A custom size and configuration ring was fabricated.

Now you are done!





The fire feature was commissioned by Mark and Jair in Long Beach California. The very top bowl was filled with Ford Blue Fire Glass and the bowl below has 300 fibers installed. The fiber optics changes colors of can be stationary or change colors at will. The water in the fiber optics bowl spins and spills over onto the rock base.

We will explain as we move forward. Evening pictures with the fiber optics in motion and the under lighting will be shown as soon as we can visit the site in Long Beach in the evening.

First the utilities were ran underground (18") and this is generally permit required work.

Second, the pond liner is installed and then we drop in our feature. This feature was powder coated at the request of the customer.

Below is the NEMA enclosure to house the electronics and fiber optics.

We installed 3 = 2,700 GPH (gallon per hour) pumps to power the flow of water. We turned each pump down to accommodate the proper water flow.

Level the top fountain.

Above you see the NEMA box exposed, it will be covered with stone as soon as the electrician finishes his switch installations. There will be one switch for each of the 3 pumps, fiber optics, fiber optics color wheel and under the top bowl we installed lighting to illuminate the rock below in the the evening.

Above and below the electrical panel will be completely covered.

We can build these fountains for you to install yourself or we can aid you in building your own. We can help you design and or build your fire and water feature. Finished and evening pictures still to come!





This next set of pictures of a fire and water feature is now in Nebraska with Brian Johnson.

We will explain as we go:

The water spins in the lower bowl spilling over giving you white noise.

The lights on the inner edger can be LED or Incandescent, which ever you prefer.

A 12" center-less stainless steel ring is used

The glass we used for testing is Starfire Base Glass

The bottom holding tank can be as close or as far as you like. The hoses which return the water to the lower tank can also be above the water line creating a trickling water noise. This can be adjusted to your desire.



Now with fire!

You can see the holding tank 24" below and the water is dripping into the tank.

We cut a pattern of a top to conceal the edge light. That is the border you are seeing.

The next Fire and Water is installed in Cafe Vino in Fort Collins Colorado. They built the table and we provided the feature.
Cafe Vino 1200 South College Ave Fort Collins CO 80524



Click "HERE" to see the Dominic Feature!!! or on the picture

The next 27 pictures are of the Dominic Fire Water Feature finished and ready for crating/ shipping.

Here we go: The pictures explain themselves.





The next fire table was built by Brian Johnson of Omaha Nebraska, very nice! We supplied the components and Brian did the hard part, the table.

We don't have the construction pictures but we do have the table finished. Add Bronze Base Glass and to pit with 1 lb of Ice Ice Ice Topper, you are done.



The blue is actually food coloring.

The next Fire and Water features were built for Cafe Vino in Denver Colorado.

The water in the holding tank spins and gets pumped up to the inside of the fire bowl which drips it out back into the water tank.

The water tank has lighting installed in the upper edge. There are many different types of lighting which can be installed.

These only require a 16" hole for the upper bowl to come up and through. The tank is mounted from the bottom.

The fire bowl raises and lowers to increase or decrease the water/ white noise created.



The next fire and water feature is one of our newer designs. The base bowl is a 24" spun aluminum bowl and the fire bowl is a 16" spun aluminum bowl. We will show you how it is made and tested.
